DIY replace or install dishwasher for beginners!

Generated guide based on video: Watch on YouTube

Summary: This guide teaches you how to replace an old dishwasher with a new one. It covers the necessary tools, disconnection of the old unit, and installation of the new dishwasher, ensuring a smooth and leak-free setup.

Materials Needed

  • New dishwasher
  • Old dishwasher
  • Drill with interchangeable bits
  • New water hose
  • Wrenches
  • Screwdriver

Outcome: Successfully install a new dishwasher in place of an old one

Steps

Step 1: Prepare for replacement

Gather all necessary tools and materials, and plan for the time needed based on your comfort level with hands-on tasks.

Shows the preparation of tools and materials needed for the replacement.

Shows the preparation of tools and materials needed for the replacement.

Step 2: Remove dishwasher cover

Remove the cover at the bottom of the dishwasher by unscrewing the bolts to access internal components.

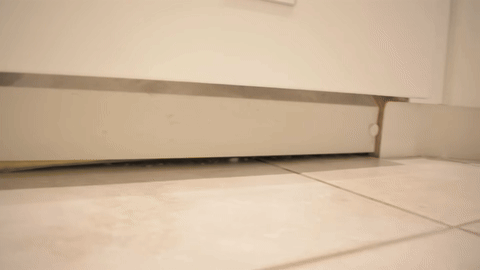

Demonstrates the removal of the dishwasher cover by unscrewing bolts.

Demonstrates the removal of the dishwasher cover by unscrewing bolts.

Step 3: Disconnect electrical connections

Turn off the dishwasher breaker, open the electrical box, and disconnect the black, white, and ground wires.

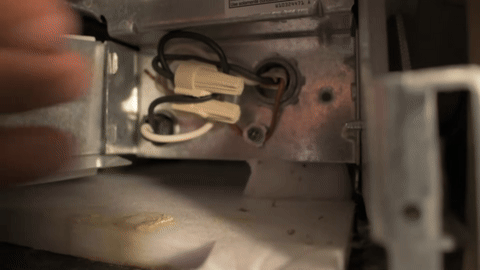

Shows the process of disconnecting the electrical wires from the dishwasher.

Shows the process of disconnecting the electrical wires from the dishwasher.

Step 4: Shut off water supply

Close the valve supplying water to the dishwasher to prevent leaks during disconnection.

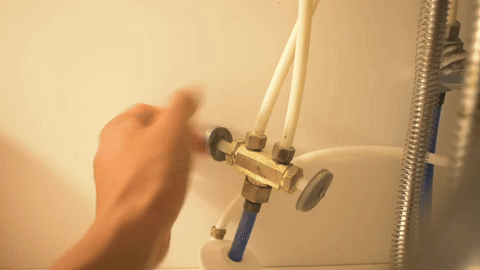

Shows the process of shutting off the water supply valve.

Shows the process of shutting off the water supply valve.

Step 5: Disconnect water and disposal lines

Remove the inlet valve and unclamp the disposal line, ensuring a towel is placed to catch any water.

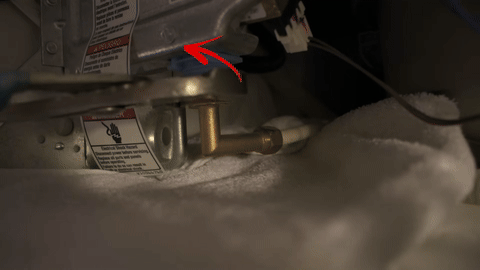

Demonstrates the disconnection of water and disposal lines with a towel in place.

Demonstrates the disconnection of water and disposal lines with a towel in place.

Step 6: Remove old dishwasher

Loosen the brackets securing the dishwasher to the countertop and carefully pull out the dishwasher, ensuring no stress on lines.

Shows the process of loosening brackets and removing the old dishwasher.

Shows the process of loosening brackets and removing the old dishwasher.

Step 7: Prepare new dishwasher

Open the new dishwasher, check for the drain hose component, and prepare it for installation by removing the bottom panel.

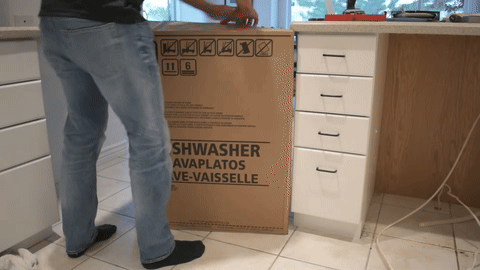

Shows the preparation of the new dishwasher, including checking components and removing the bottom panel.

Shows the preparation of the new dishwasher, including checking components and removing the bottom panel.

Step 8: Install electrical connections

Transfer the electrical clamp from the old dishwasher if necessary, and connect the wires using wing caps.

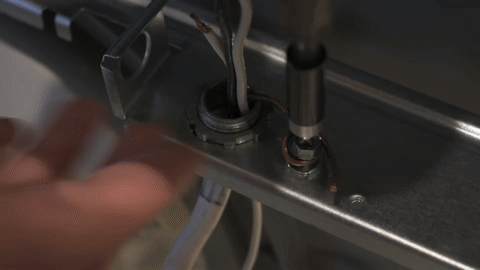

Shows the installation of electrical connections using wing caps.

Shows the installation of electrical connections using wing caps.

Step 9: Connect water supply and drain hose

Attach the water supply hose and drain hose, ensuring they are secure and not damaged.

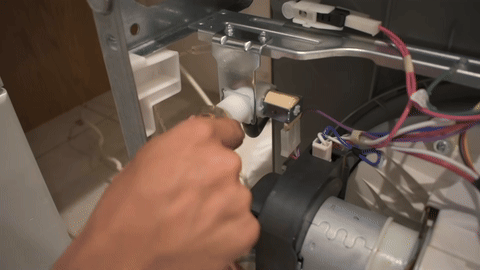

Demonstrates the attachment of the water supply and drain hose.

Demonstrates the attachment of the water supply and drain hose.

Step 10: Secure new dishwasher

Adjust the height of the dishwasher using peg legs, secure it with brackets, and ensure it is flush with the countertop.

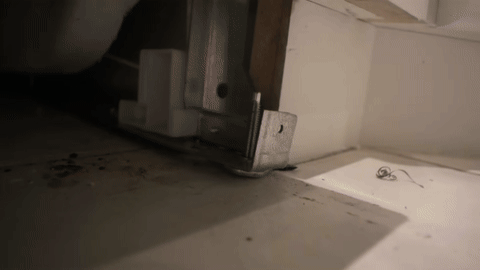

Shows the adjustment of dishwasher height and securing with brackets.

Shows the adjustment of dishwasher height and securing with brackets.

Step 11: Check for leaks and finalize installation

Turn the water supply back on, check for leaks, and switch the breaker back on to complete the installation.

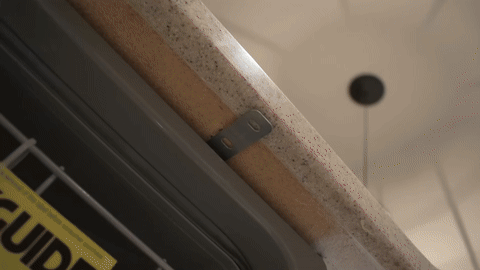

Shows the final steps of checking for leaks and turning the water supply back on.

Shows the final steps of checking for leaks and turning the water supply back on.
